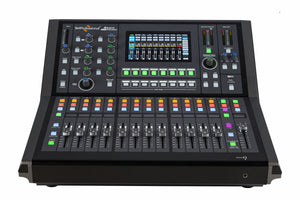

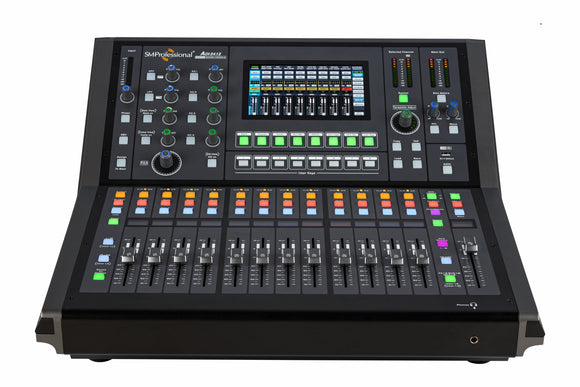

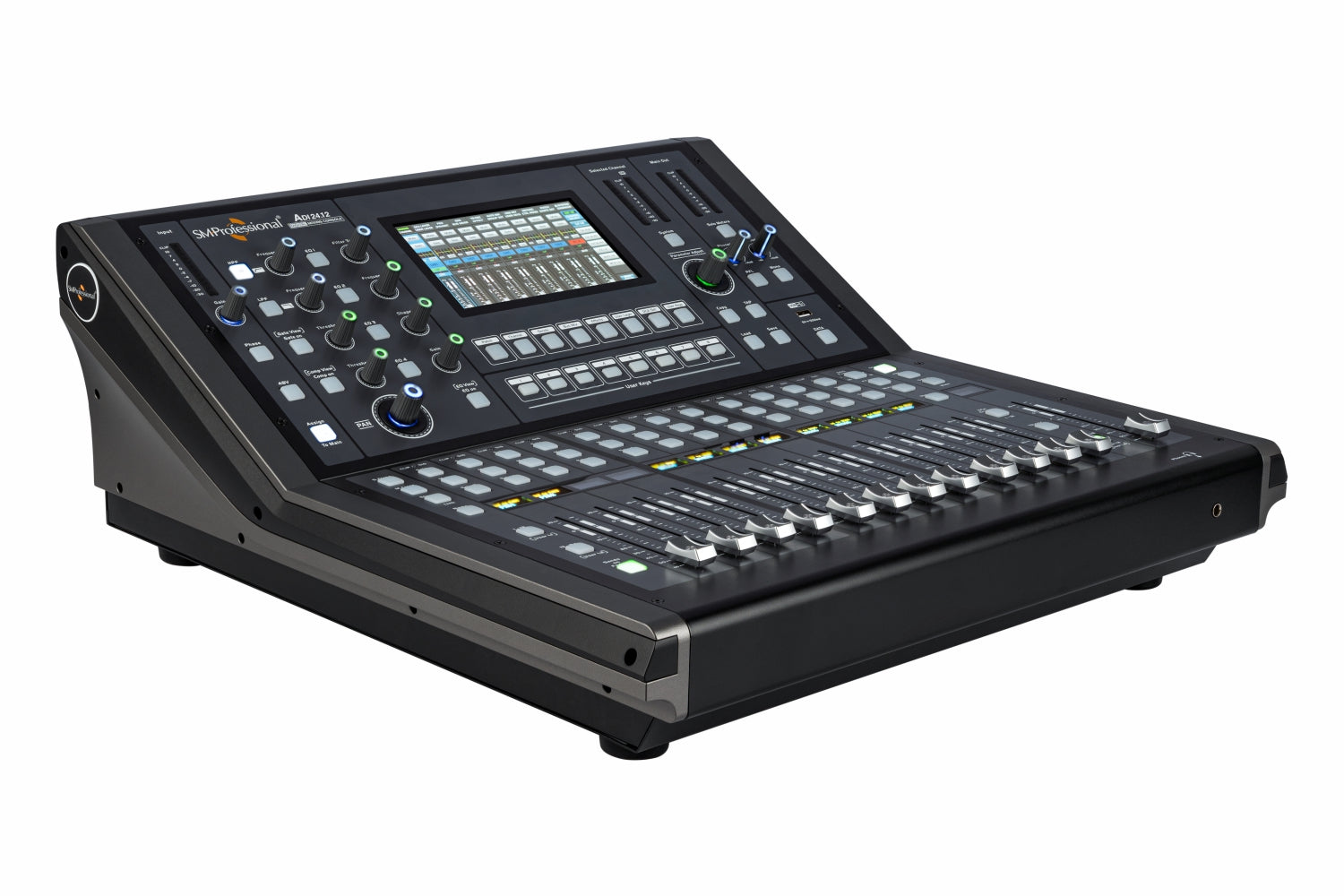

Studiomaster ADI 24.12 Premium 24 Channel Digital Mixing Console
- The Studiomaster Professional ADI 24.12, is a premium 24 Channel Digital Mixing Console. Featuring multiple inputs and outputs, 7” LCD touchscreen display, 13 motorised faders, 12 smart DCAs, abundant DSP EFX processing tools and more, the ADI 24.12 is engineered to deliver a complete integrated solution to empower speed and precision in real-world live mixing use cases. Backed by Studiomaster Professional’s years of legacy in providing high-quality audio equipment, the ADI 24.12 is geared to be a compact and powerful mixing solution in live, touring, install and studio applications.

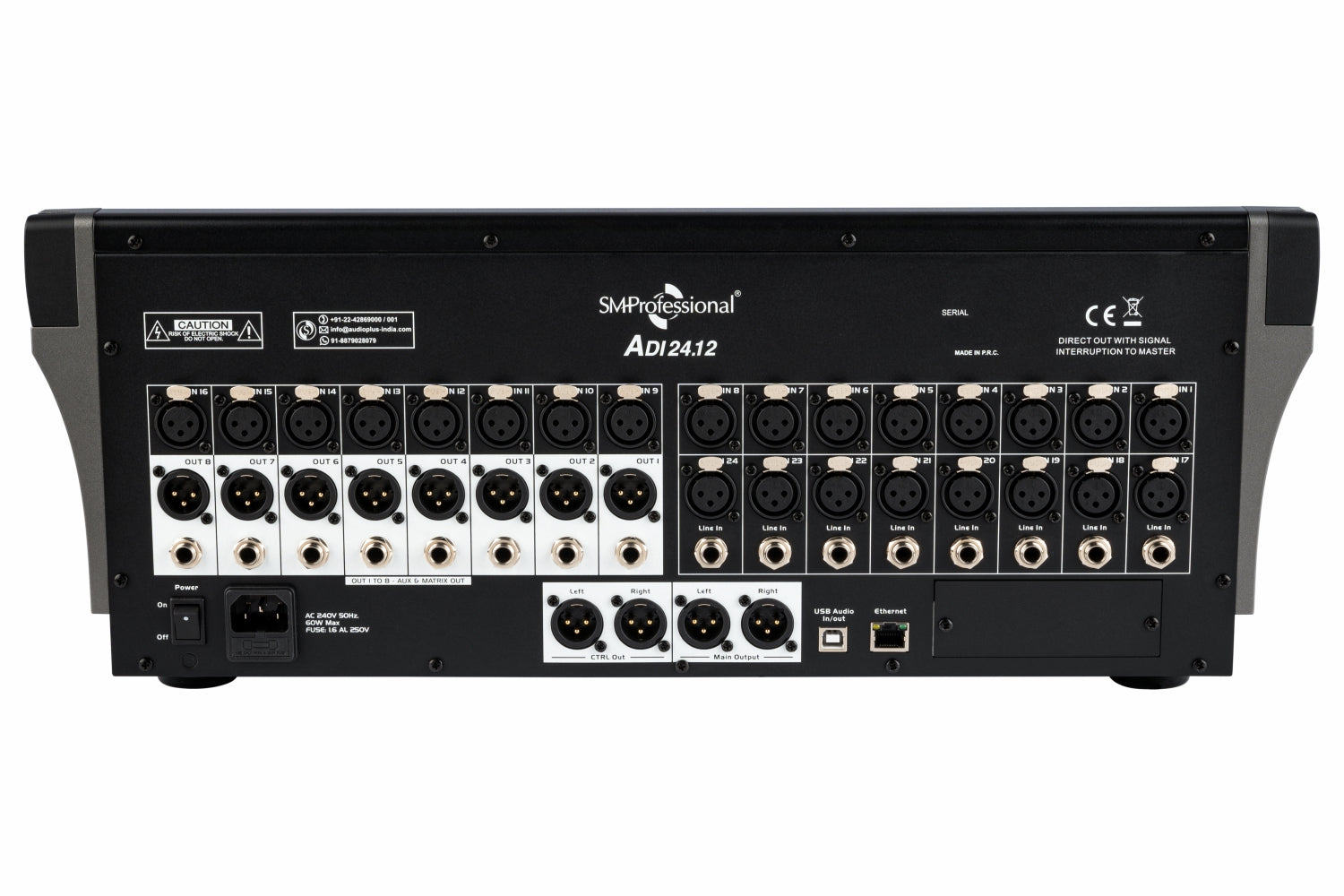

- 24 XLR and 8 Line analog inputs with digital gain control.
- Premium 13 x 100mm motorised faders for agile control.
- 13 individual OLED displays for channel data.
- Digital 4-band full PEQ with multiple filters (inputs & outputs) and 31-band GEQ (outputs).
- Full duplex USB audio interface for simultaneous recording and playback from a PC.
- Advanced features including Auto mix, RTA analyzer, feedback control, talkback, signal generator, matrix routing and much more.
- User definable presets with multiple storing and recall options.
- Dante add-on for network AV integration (available separately)
- 12 flexible outputs: 8 x assignable mix bus (XLR & 1⁄4” line), 2 main L/R (XLR) and control room L/R (XLR).
- Responsive 7” high-resolution colour LCD touchscreen for end-to-end navigation and control.
- Integrated 32-bit dual DSP EFX with EQ, noise gate, compressor/limiter, delay and more.
- High-resolution 24-bit/48kHz sampling rate.
- Individually assignable +48V Phantom power.
- Multiple colour LED metering and self-illuminated switches for effortless visual mixing cues.
- Password protection to lock and unlock settings.
